Memmert Ovens Overview

Hettich offers various ovens/sterilizers, vacuum, paraffin, and pass-through ovens that lead the competition in precision, safety, and reliability. Learn more about the many benefits Memmert universal ovens have to offer.

Learn More About Memmert Ovens

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel doors on two sides

Internals

2 stainless steel grid(s), electropolished

Warranty

3-year warranty

Specifications

Model

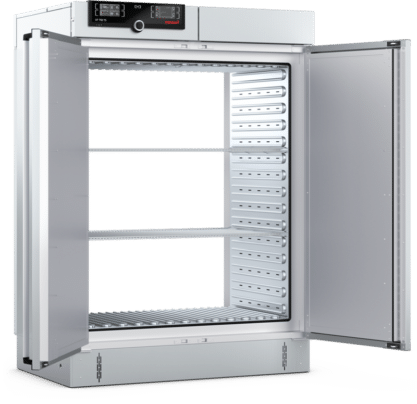

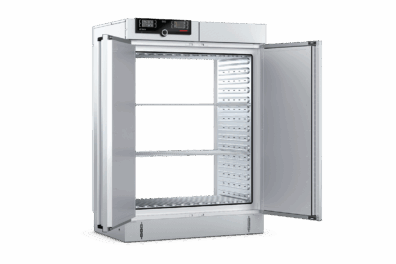

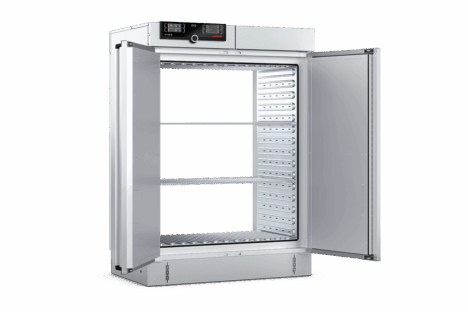

Memmert UF750TS

Internal volume (cuft)

Temp. range

+10 above ambient to +250 °C

Sensor

2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Set Temp. Accuracy

up to 99.9 °C: 0.1 / from 100 °C: 0.5

Control Panel

TwinDISPLAY, adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

Function HeatBALANCE

Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %

Convection/Fan

(UF) Forced Air Fan

Fresh air

Admixture of pre-heated fresh air by electronically adjustable air flap

Programming

AtmoCONTROL software on a USB stick fro programming, managing and transferring programmes via Ethernet interface or USB port.

Temp. Control

Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Independently working, digitally adjustable electronic micro-processor overtemperature monitor TWW, protection class 3.1 (max-value for overtemperature, min-value for undertemperature).

AutoSAFETY

Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature

Alarm

Visual and acoustic

Humidity rh

Max. 80 %, non-condensing

Interior

Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides.

Interior Dims (WxHxD) in.

41 x 47.25 x 23.75

Exterior dims (WxHxD) in.

48.25 x 67.5 x 30.75 (d +2x2.25 in. door handle)

Weight (lbs.)

573
