EBA 270

SMALL CENTRIFUGE

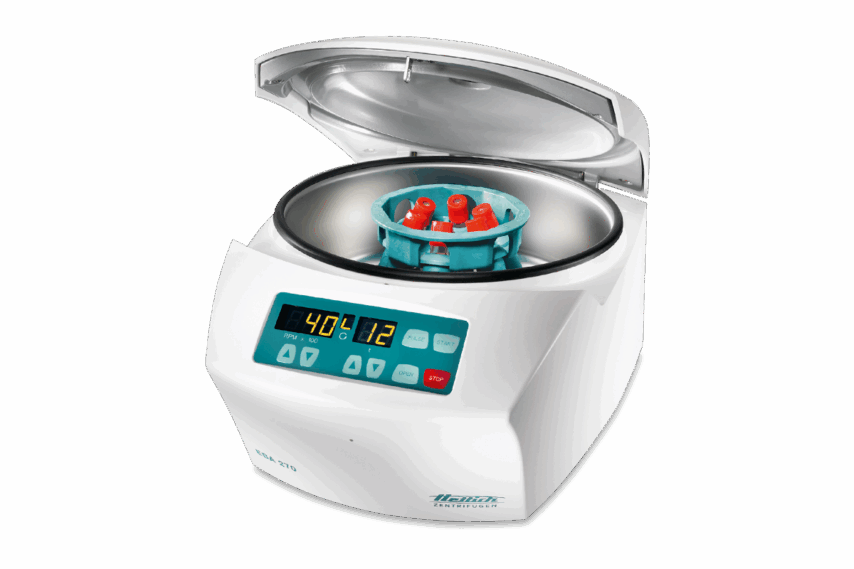

Hettich EBA 270 small centrifuge open
Max. Capacity
6 x 15 mL
Max. RPM/RCF
4,000/2,254
Temperature Control
Ambient

BLOOD / URINALYSIS / PEDIATRIC

Simple. Compact. Complete.

Built-in, horizontal rotor for flat separation of all blood, SST/gel, urine and pediatric tubes. Ideal for off-site draw locations, physician office labs and veterinary offices.

The EBA Series Small Centrifuges

See the versatility of the Hettich EBA 270 small clinical centrifuge.

AABB Standards-Compliant Product Logo

AABB Standards-Compliant Product

Products that achieve AABB’s Standards-Compliant Product recognition have been thoroughly reviewed by AABB and confirmed as adhering to the AABB Standards related to equipment, process control, and document control.

Quiet Operation Icon

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

icon

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

lock icon

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

Five 5 Year Warranty Icon

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

Fully Certified Icon

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Small in Size, Big on Results

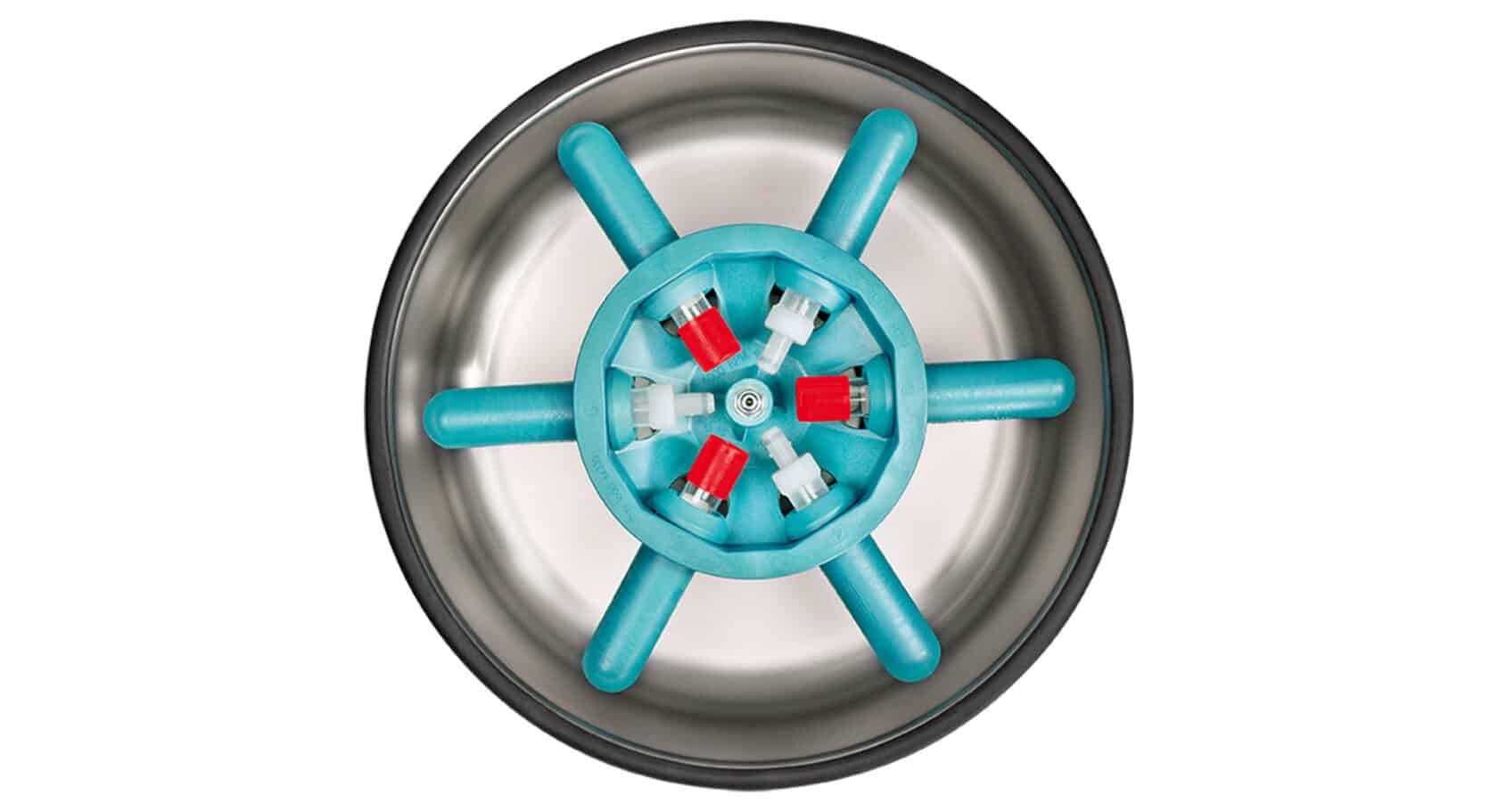

Horizontal separation in a standard gel tube with the EBA 270.

EBA 270 Application Package

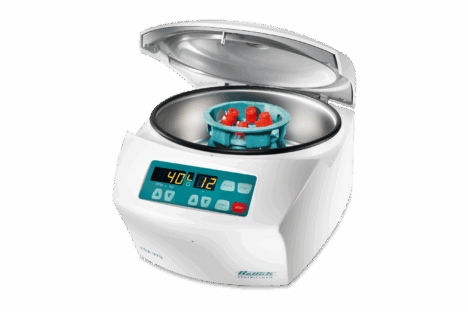

Hettich EBA 270 small centrifuge open

EBA 270
COMPLETE Package

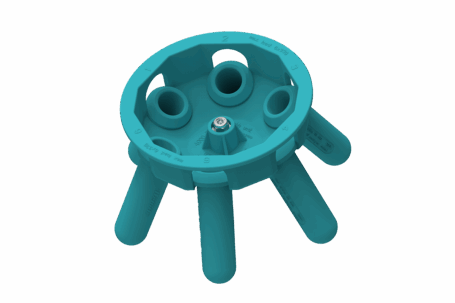

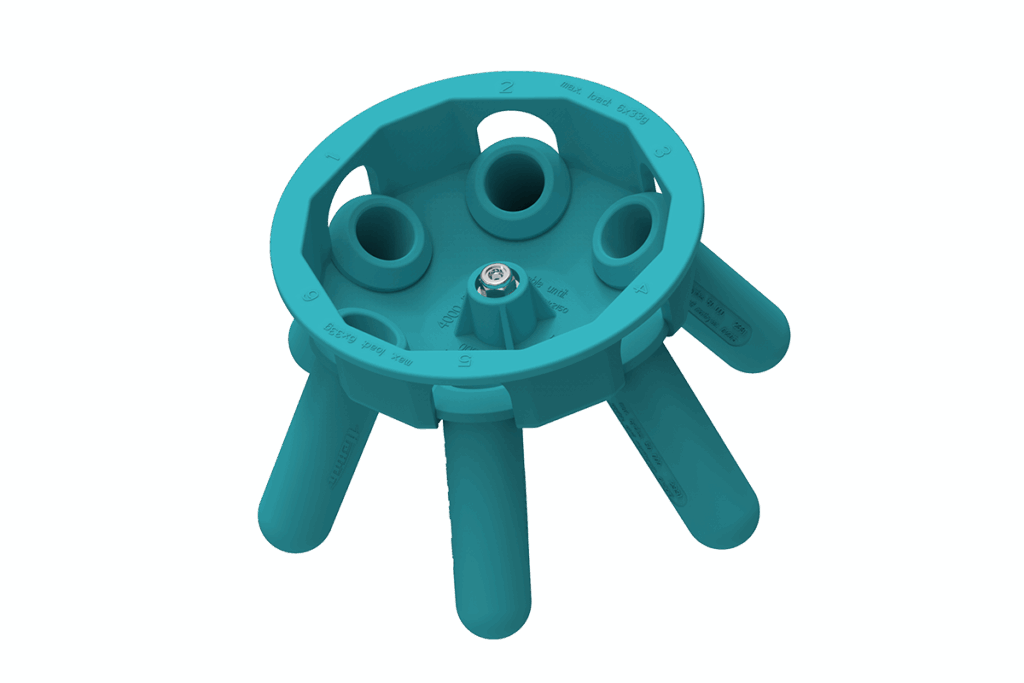

The EBA 270 Complete Package comes with everything you need to perform your application. This includes the EBA 270 centrifuge, a 90º swing-out, built-in rotor and adapters for blood and pediatric tubes. Contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
0.5 Pediatric
10.7 x 86
≤ 4.000
≤ 1,359
6
1.6 - 7
13/16 x 75
≤ 4.000
≤ 1,807
6
4 - 10
13/16 x 100
≤ 4.000
≤ 2,254
6
12 - KOVA
17 x 102
≤ 4.000
≤ 2,254
PACKAGE CONTENTS

(1) Centrifuge, (1) Built-in, Horizontal Rotor, (6) Adapters 13 x 75/100 mm, (6) Adapters 16 x 75/100 mm, (6) Adapters Pediatric

Request More Information

Specifications


Hettich EBA 270 small centrifuge open
Model
EBA 270
Max. Capacity
6 x 15 ml
Max. RPM/RCF
4,000/2,254
Temp. Control
Ambient
Dims. (HxWxD) mm
239 x 326 x 389
Dims. (HxWxD) in
9 x 13 x 15
Weight (kg)
14
Weight (lbs.)
31
Power supply
120 V
Warranty
5-years
Rotor Type(s)
Built-in, swing-out
Request More Information

You may also consider...

hettich EBA 200 small centrifuge open
EBA 200

Ideal for small clinical applications with built-in, 8-place, angle rotor. Model ‘S’ version for rapid separation.

Learn More
Hettich EBA 280 small centrifuge open
EBA 280

Small clinical centrifuge ideal for serology and the rapid separation of your STAT chemistry, coag. and pediatric samples in a 6-place, swing-out rotor at up to 5,071 x g.

Learn More

The Hettich EBA Series

See why the Hettich EBA Series small benchtop centrifuges are ideal for low-volume clinical applications in the blood bank, hematology, STAT, core lab, and physician’s office laboratory.

Resources

Hettich EBA 270 blood, urinalysis, pediatric small centrifuge product sheet

EBA 270 Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 161.6 kb
Download now

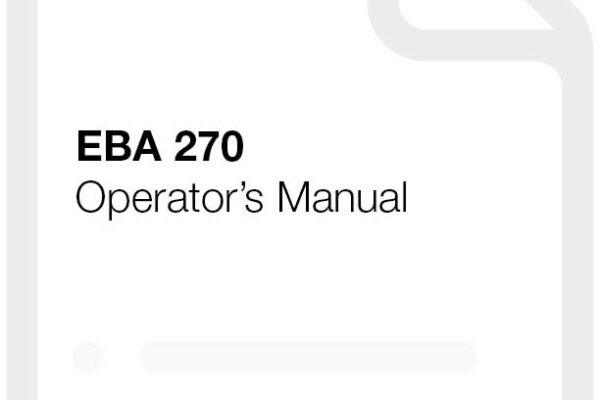

EBA 270 Operator’s Manual

Operator's manual for models EBA 270. When using Hettich equipment, please refer to your product operator's manual for important safety and product-use instructions. read more...

File type: PDF
File size: 3.5 mb
Download now
Hettich small centrifuges sell sheet

Small Centrifuges Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 183.6 kb
Download now

Hettich EBA 200 and EBA 270 Small Centrifuges | Video Summary

Hettich EBA 200 and EBA 270 Small Centrifuges | Video Summary The EBA 200 / 200 S and EBA 270 are part of Hettich’s best-selling EBA Series clinical tabletop centrifuges. These sleek, compact centrifuges feature built-in, multifunctional rotors for either fixed or swing-out applications. The higher-performance EBA 200S version is read more...

Hettich EBA Series Small Centrifuges | Product Video

See why the Hettich EBA Series small benchtop centrifuges, the EBA 200, EBA 270, and EBA 280, are ideal for low-volume clinical applications in the blood bank, hematology, STAT, core lab, and physician's office laboratory. Their size, versatility, and build quality outperform low-cost alternatives for years of worry-free operation. Learn read more...

Resource Library

Find all the EBA 270 resources in the Resource Library.

Need Help Choosing a Centrifuge?

Hettich manufactures a complete range of centrifuges for nearly all standard laboratory applications. To help you choose the right centrifuge for your lab, we created a quick laboratory centrifuge guide to help narrow your choice.

Request Information

Please complete the form below for product information, support, questions or comments and we will get back to you as soon as possible.
