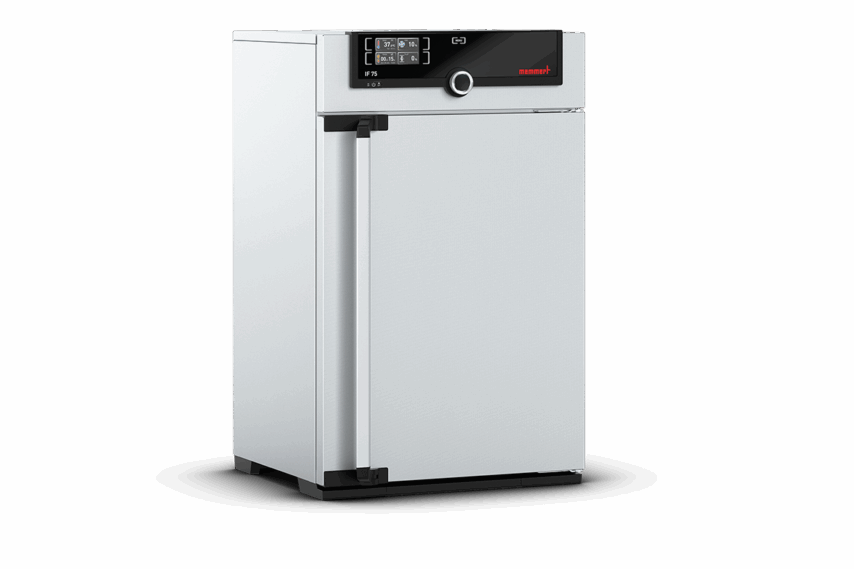

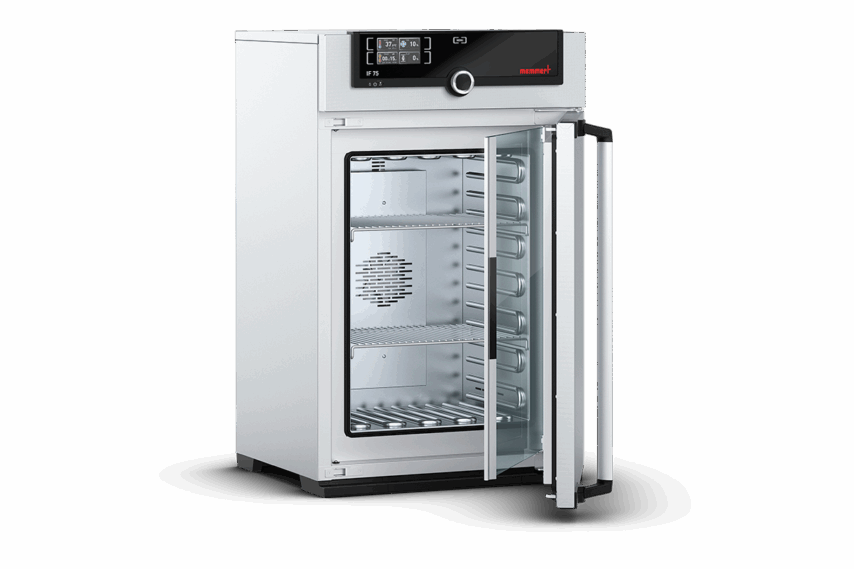

Memmert IN/IF 75

Standard/Heated Incubator

Internal Volume
74 L (3 cu.ft.)

Temp. Range
+5 to +80 °C

Dimensions (in)
23 x 37 x 20.25

Standard Delivery Incubator

Download Product Sheet

Memmert IN/IF 75

Specifications Resources Request Info

Get Quote

Memmert Incubators Overview

Memmert incubators are ideal for all applications with temperatures up to +80°C – specifically for incubating living cultures at +37 °C. Learn more about the many benefits Memmert series incubators have to offer.

Learn More About Memmert Incubators

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with 2-point locking (compression door lock)

Calibration Certificate

Works calibration certificate for +37°C

Internals

2 stainless steel grid(s) – electropolished

Warranty

3-years

Inner Door

Inner glass door

Specifications

Model

Memmert IN75, IN75plus, IF75, IF75plus

Internal volume (cuft)

Temp. range

IN75/IN75plus: At least 5 above ambient temperature to +80 °C. IF75/IF75plus: Min. 10°C above ambient up to +80°C

Sensor

1 Pt100 sensor DIN class A in 4-wire-circuit. Plus models: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Set Temp. Accuracy

0.1 °C

Control Panel

ControlCOCKPIT: SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display. Plus models: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

Sterilization

Plus models: Fixed sterilization programme (4 hours/160°C) for sterilization of working chamber, not for sterilizing the load

Convection/Fan

(IN) Natural Convection / (IF) Forced Air (Fan)

Fresh air

Admixture of pre-heated fresh air by electronically adjustable air flap

Programming

AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). Plus models: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Temp. Control

Adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Plus models: Add mechanical temperature limiter TB, Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display

AutoSAFETY

Plus models: Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature

Alarm

Plus models: Visual and acoustic

Humidity rh

max. 80 %, non-condensing

Interior

Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

Interior Dims (WxHxD) in.

15.75 x 22 x 13 (IF models: d less 1.5 in. for fan)

Exterior dims (WxHxD) in.

23 x 37 x 20.25 (d +2.25 in. door handle)

Power

115 V, 50/60 Hz, approx. 900 W

Warranty

3 years

Request More Info on the Memmert IN/IF 75

You may also consider...

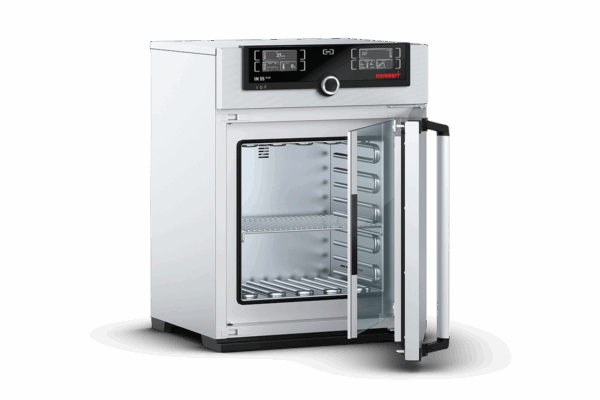

Memmert IN55, IN55plus, IF55, IF55plus
