ROTINA 420 | R

BENCHTOP CENTRIFUGE

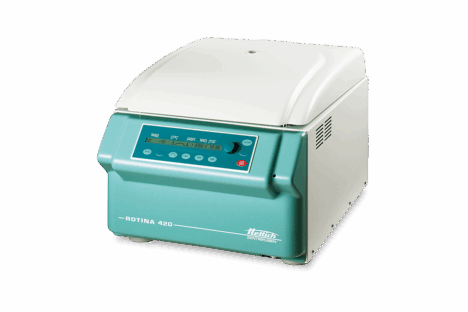

hettich ROTINA 420 Benchtop Centrifuge

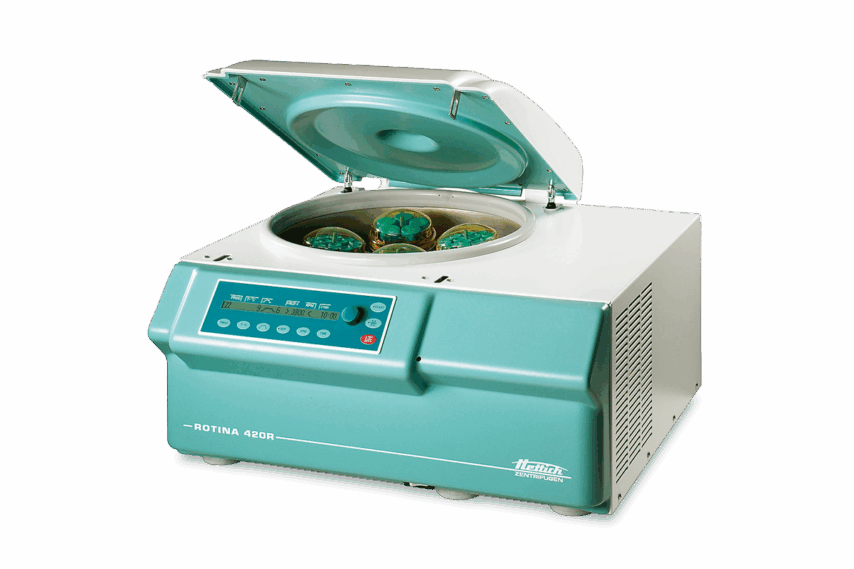

hettich ROTINA 420 R Benchtop Centrifuge open

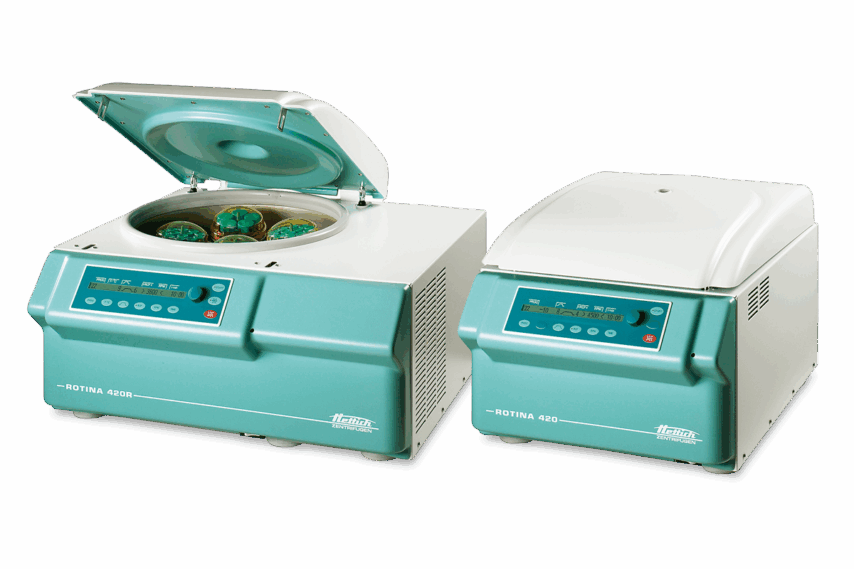

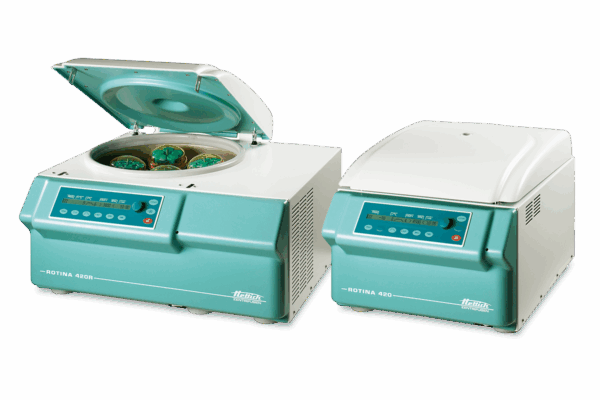

hettich ROTINA 420 and 420 R Benchtop Centrifuges
Max. Capacity
4 x 600 mL
Max. RPM/RCF
15,000/24,400
Temperature Control
-20 to +40 ºC (420 R)

BLOOD / CELL CULTURE / PLATES / BOTTLES

Download Brochure
ROTINA 420 | R
Packages Specs Resources Request Info
...
Get Quote

High-throughput centrifuge that maximizes your bench space and exceeds performance.

The Hettich ROTINA 420 is a high-performance benchtop centrifuge for large sample volumes, yet not overly large in size. With a maximum capacity of 4 x 600 ml, (104) blood collection tubes, (52) 15 mL conical tubes or (16) plates, the ROTINA 420 and ROTINA 420R refrigerated (-20 to +40 °C) centrifuges are ideal for applications in clinical chemistry, in biotechnology and in life science research facilities.

Quiet Operation Icon

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

icon

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

lock icon

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

Five 5 Year Warranty Icon

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

Fully Certified Icon

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Hettich ROTINA 380 benchtop centrifuge versa rotor

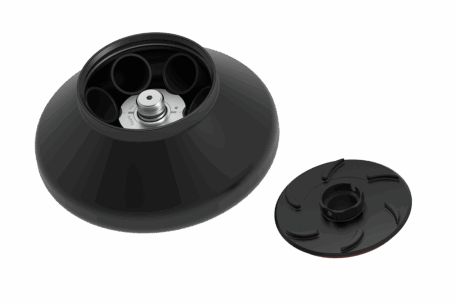

Versa-Rotor For Multiple Applications

Hettich’s Versa-Rotor saves time and effort. Spin a variety of media types and many configurations all with one rotor.

Hettich ROTINA 420 versa lock buckets

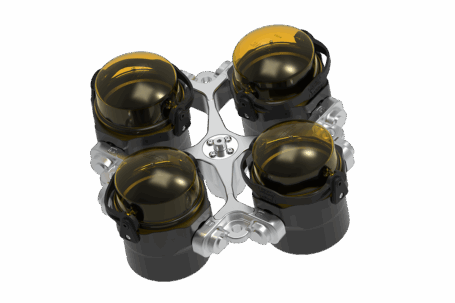

Versa-Lock Buckets Easy to Load, Unload, Carry and Seal

Hettich’s VERSA-LOCK buckets feature an integrated handle to provide you with a convenient method for transporting and loading your samples while doubling as locking mechanism for your bio-containment lids.

Hettich ROTINA 420 Spin Microtiter Plates with Bio-containment

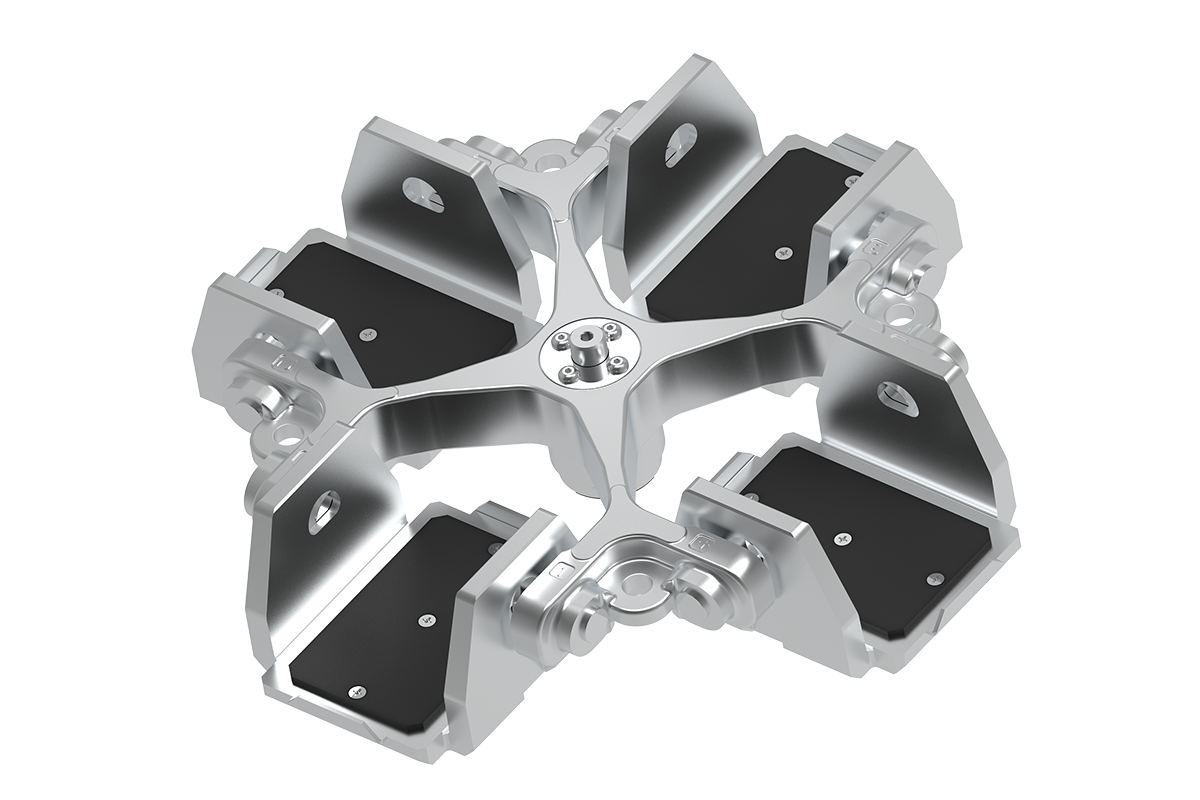

Spin Microtiter Plates with Bio-containment

Swing-out 2-place rotor for up to 12 microtiter plates with bio-containment. Max. RCF of 3,926.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS
Hettich ROTINA 420 benchtop centrifuge

Shown below are the most common application packages for the ROTINA 420 centrifuge. Custom packages are available, please inquire for details.

ROTINA 420 | R Application Packages

All packages blood tubescell cultureplates
Hettich ROTINA 420 blood tube package

ROTINA 420 / ROTINA 420 R
BLOOD TUBE PACKAGE - 4 - BC

The ROTINA 420 Blood Tube Package 4 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 mm and 16 x 75/100 mm and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
104
1.6 - 7
13 x 75/100
≤ 4,800
≤ 4,585
72
4 - 10
16 x 75/100
≤ 4,800
≤ 4,585
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

Request More Information
Hettich ROTINA 420 blood tube package

ROTINA 420 / ROTINA 420 R
BLOOD TUBE PACKAGE - 2 - BC

The ROTINA 420 Blood Tube Package 2 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 mm and 16 x 75/100 mm and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
52
1.6 - 7
13 x 75/100
≤ 4,800
≤ 4,585
36
4 - 10
16 x 75/100
≤ 4,800
≤ 4,585
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

Request More Information
Hettich ROTINA 420 cell culture package

ROTINA 420 / ROTINA 420 R
CELL CULTURE PACKAGE - 4 - BC

The ROTINA 420 Cell Culture Package 4 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 15 mL and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
52
15 Conical
17 x 120
≤ 4,800
≤ 4,740
20
50 Conical
29 x 115
≤ 4,800
≤ 4,688
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 5 mL, (4) Adapters 50 mL, (4) Bio-containment Lids

Request More Information
Hettich ROTINA 420 cell culture package

ROTINA 420 / ROTINA 420 R
CELL CULTURE PACKAGE - 2 - BC

The ROTINA 420 Cell Culture Package 2 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 15 mL and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
26
15 Conical
17 x 120
≤ 4,800
≤ 4,740
10
50 Conical
29 x 115
≤ 4,800
≤ 4,688
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 5 mL, (2) Adapters 50 mL, (4) Bio-containment Lids

Request More Information

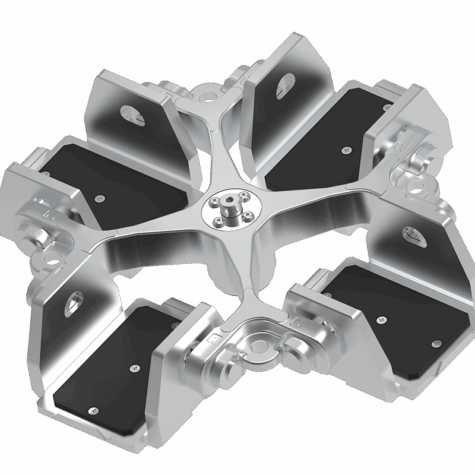

Hettich ROTINA 420 plate package

ROTINA 420 / ROTINA 420 R
PLATE Package

The ROTINA 420 Plate Package comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, and buckets. Many a-la-carte options are also available, contact us for more details.

Watch Video
PLATE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
16
Microtiter
--
≤ 4,800
≤ 4,096
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets

Request More Information
Hettich ROTINA 380 benchtop centrifuge bottle package

ROTINA 420 / ROTINA 420 R
BOTTLE PACKAGE - BC

The ROTINA 420 Bottle Package BC comes complete with everything you need to perform your application. This includes the ROTINA 420 centrifuge, swing-out rotor, buckets and adapters and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

BOTTLE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
250
61 x 122
≤ 4,800
≤ 4,740
4
400
81 x 136
≤ 4,800
≤ 4,740
4
600
93 x 134
≤ 4,800
≤ 4,740
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Bio-containment Lids

Note: Compatible with other bottle sizes up to 600 ml, please inquire

Request More Information

Supports Over

302Application Configurations
TUBE OPTIONS

blood, pediatric, urine, conical and skirted up to 50 mL standard up to 250 mL, plates, bottles up to 600 mL, 5 mL microliter

ROTINA 420 | R
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Create Your Own Package

Specifications

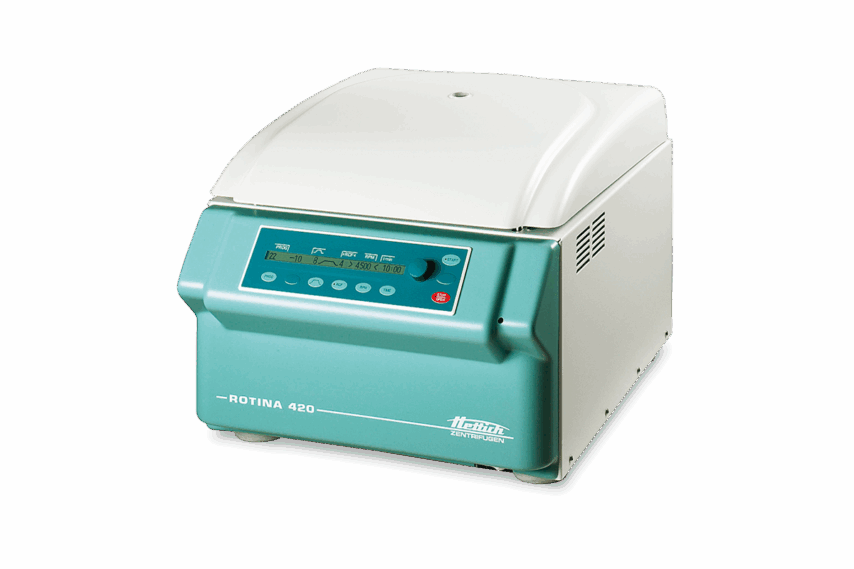

hettich ROTINA 420 Benchtop Centrifuge
hettich ROTINA 420 R Benchtop Centrifuge open
Model
ROTINA 420
ROTINA 420 R
Max. Capacity
4 x 600 ml
4 x 600 ml
Max. RPM/RCF
15,000/24,400
15,000/24,400
Temp. Control
Ambient
-20 °C to +4 °C
Dims. (HxWxD) mm
423 x 506 x 650
423 x 713 x 654
Dims. (HxWxD) in
17 x 20 x 25.5
17 x 28 x 26
Weight (kg)
84
117
Weight (lbs.)
185
258
Power supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)
Swing-out, Fixed-angle, Plates
Swing-out, Fixed-angle
Request More Information
