TTC256

Environmental Chamber

Internal Volume
256 L (9 cu.ft.)

Temp. Range
-42 to +190 °C

Dimensions (in)
35.25 x 68 x 43.25

Standard Delivery Environmental Test Chamber

Download Product Sheet

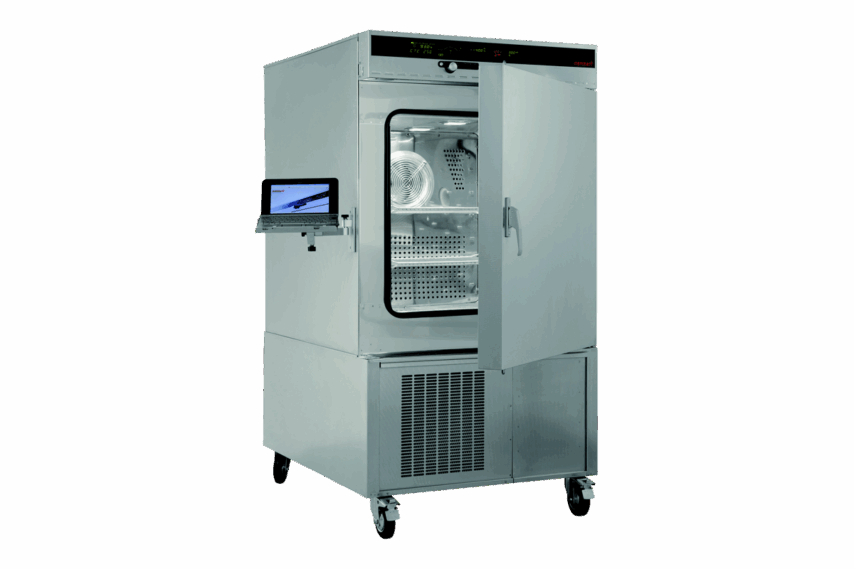

Memmert TTC256

Specifications Resources Request Info

Get Quote

Memmert Climate Chambers Overview

Various stability/constant climate chambers, humidity chambers, and environmental test chambers are highly efficient and provide accurate controls for a homogeneous and stable environment. Learn more about the many benefits Memmert series climate chambers have to offer.

Learn More About Memmert Climate Chambers

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with double-locking and 4-point adjustment, heated.

Inner Door

Easy-to-clean stainless steel interior, materil 1.4301 (ASTM 304), hermetically welded

Internals

1 stainless steel grid(s), electropolished.

Entry Port

Entry port right, 80 mm, with stopper.

Calibration Certification

Works calibration certificate standard values -20 °C and +160 °C.

Warranty

3-year warranty

Specifications

Model

TTC256

Internal volume (cuft)

Temp. range

from -42°C up to +190°C

Set Temp. Range

up to 99.9 °C: 0.1 / from 100 °C: 0.5

Sensor

2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control Panel

Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED). Electronic microprocessor temperature controller with auto-diagnostic system. Display digital display of all set parameters, such as temperature, weekdays, time, humidity, fan speed, program status and set-up values - language to be chosen via set-up

Programming

Chip-card control incl. 1 MEMoryCard XL with 32 kB storage capacity (max. 40 ramps)

Temp. Control

Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature. Control over- and undertemperature monitor TWW, protection class 3.3

AutoSAFETY

Additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature

Heating

Ring heater high-performance ring heaters with optimised air circulation. Door heating to avoid condensation

Cooling

Twin compressor; refrigerant R449A

Humidity rh

Max. 70 %, non-condensing

Interior Dims (WxHxD) in.

25 x 26.25 x 23.5

Max. number of internals

Exterior dims (WxHxD) in.

35.25 x 68 x 43.25 (d +2 in. door handle)

Weight (lbs.)

743

Power

3 x 400 V, 3ph. w/o N 16A, 50 Hz / approx. 7000 W

Warranty

3 years
