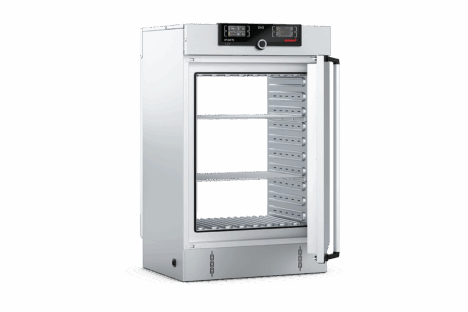

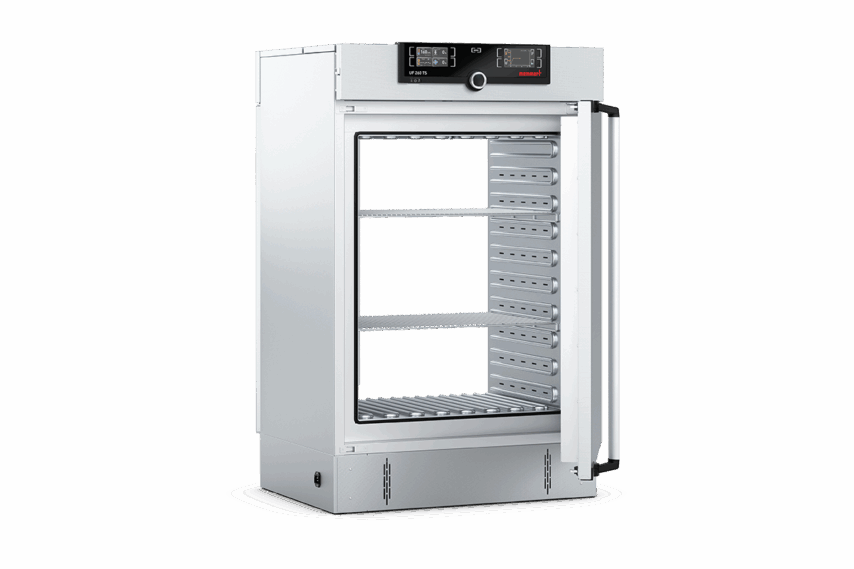

Memmert UF260TS

Pass-through Oven

Memmert UF260TS
Hettich UF260TS
Internal Volume
256 L (9 cu.ft.)
Temp. Range
+10 to +250 °C
Dimensions (in)
32.5 x 51.75 x 26.75

Standard Delivery Pass-through Oven

Download Product Sheet
Memmert UF260TS
SpecificationsResourcesRequest Info
...
Get Quote

Memmert Ovens Overview

Hettich offers various ovens/sterilizers, vacuum, paraffin, and pass-through ovens that lead the competition in precision, safety, and reliability. Learn more about the many benefits Memmert universal ovens have to offer.

Learn More About Memmert Ovens

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel doors on two sides

Internals

2 stainless steel grid(s), electropolished

Warranty

3-year warranty

Specifications


Memmert UF260TS
Model
Memmert UF260TS
Internal volume (cuft)
9
Temp. range
+10 above ambient to +250 °C
Sensor
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
up to 99.9 °C: 0.1 / from 100 °C: 0.5
Control Panel
TwinDISPLAY, adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Function HeatBALANCE
Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
Convection/Fan
(UF) Forced Air Fan
Fresh air
Admixture of pre-heated fresh air by electronically adjustable air flap
Programming
AtmoCONTROL software on a USB stick fro programming, managing and transferring programmes via Ethernet interface or USB port.
Temp. Control
Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Independently working, digitally adjustable electronic micro-processor overtemperature monitor TWW, protection class 3.1 (max-value for overtemperature, min-value for undertemperature).
AutoSAFETY
Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Visual and acoustic
Humidity rh
Max. 80 %, non-condensing
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides.
Interior Dims (WxHxD) in.
25.25 x 31.5 x 19.75
Exterior dims (WxHxD) in.
32.5 x 51.75 x 26.75 (d +2x2.25 in. door handle)
Weight (lbs.)
304
Power
115 V, 50/60 Hz, approx. 1800 W
Warranty
3 years
