Memmert UFP800DW

Universal Oven

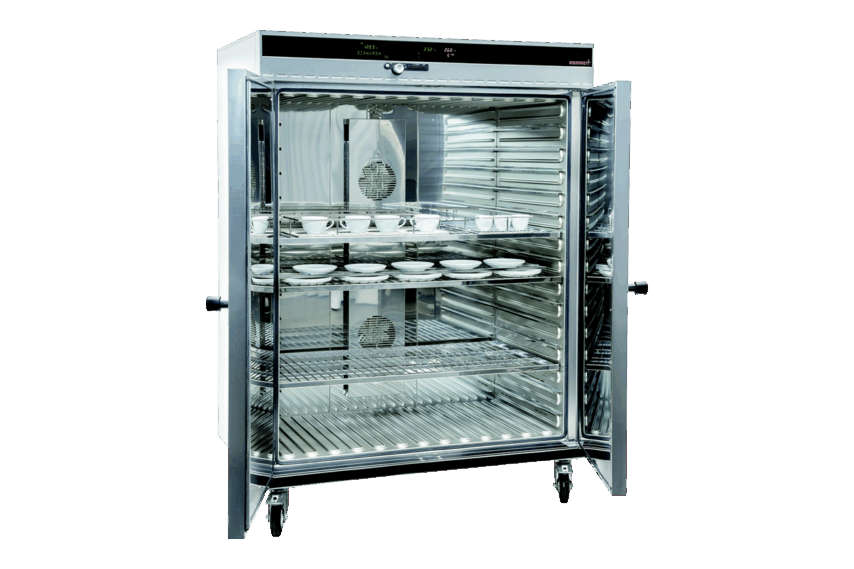

Memmert UFP800DW door open
Internal Volume
749 L (26 cu.ft.)
Temp. Range
+10 to +250 °C
Dimensions (in)
46.75 x 63.75 x 29.5

Standard Delivery Universal Oven Dishwasher

Memmert Ovens Overview

Hettich offers various ovens/sterilizers, vacuum, paraffin, and pass-through ovens that lead the competition in precision, safety, and reliability. Learn more about the many benefits Memmert universal ovens have to offer.

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with 2-point locking (compression door lock), lockable

Calibration Certificate

Works calibration certificate, calibration at +80°C

Warranty

3-year warranty

Specifications


Memmert UFP800DW door open
Model
Memmert UFP800DW
Internal volume (cuft)
26
Temp. range
+10 above ambient to +250 °C
Sensor
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
up to 99.9 °C: 0.1 / from 100 °C: 0.5
Control Panel
Electronic microprocessor temperature controller with auto-diagnostic system
Convection/Fan
(UF) Forced Air Fan
Fresh air
Admixture of pre-heated fresh air by electronically adjustable air flap
Programming
Multifunctional programming via menu on 8-digit alphanumeric digital display (language to be chosen via set-up):- tempering profiles of up to 40 ramps- time- and set-point dependent operation- air flap adjustable in 10 % steps
Temp. Control
Independently working, digitally adjustable electronic micro-processor overtemperature monitor TWW, protection class 3.1 (max-value for overtemperature, min-value for undertemperature). Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
AutoSAFETY
Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Visual and acoustic
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Interior Dims (WxHxD) in.
41 x 47.25 x 23.75 (UF models: d less 1.5 in. For fan)
Exterior dims (WxHxD) in.
46.75 x 63.75 x 29.5 (d +2.25 in. door handle)
Weight (lbs.)
408
Power
400 V, 3 phases, 50 Hz approx. 4800 W
Warranty
3 years
Request More Info on the Memmert UFP800DW

Resources

Below are resources to help you get familiar with Memmert Ovens.

Memmert Ovens/Sterilizers Product Sheet

This product sheet provides a detailed overview of the product features, benefits, and models. (more…) read more...

File type: PDF
File size: 727.9 kb
Download now
