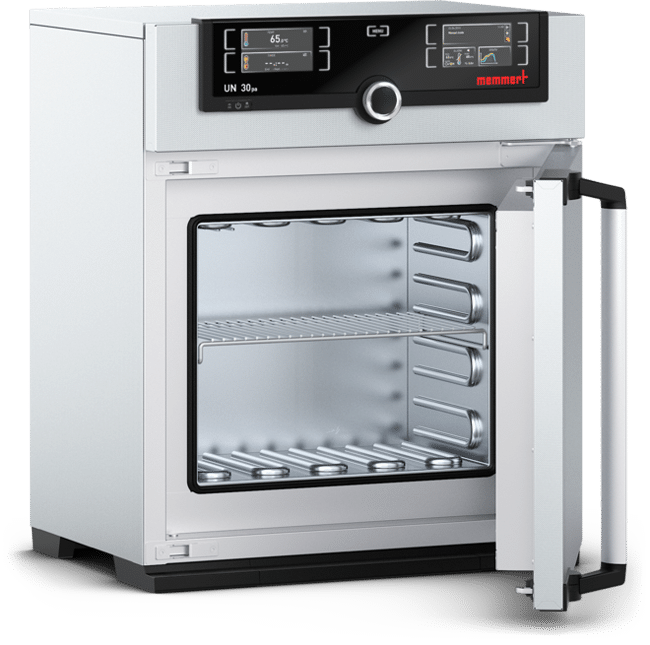

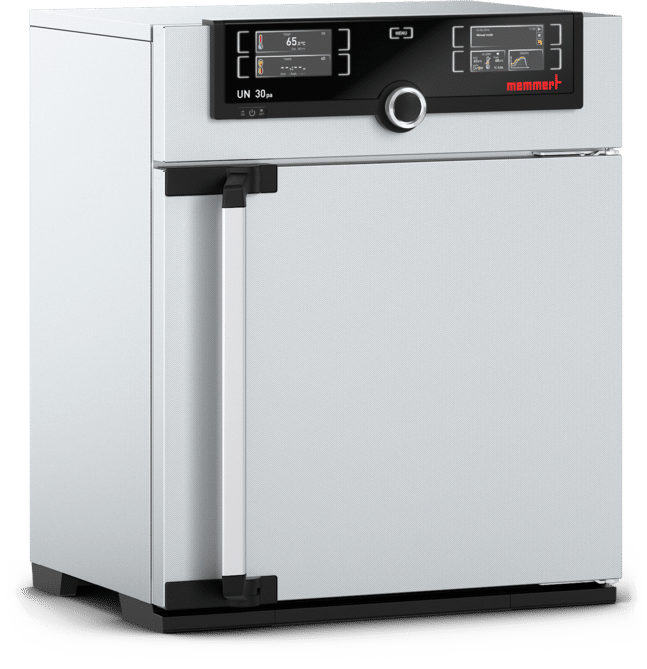

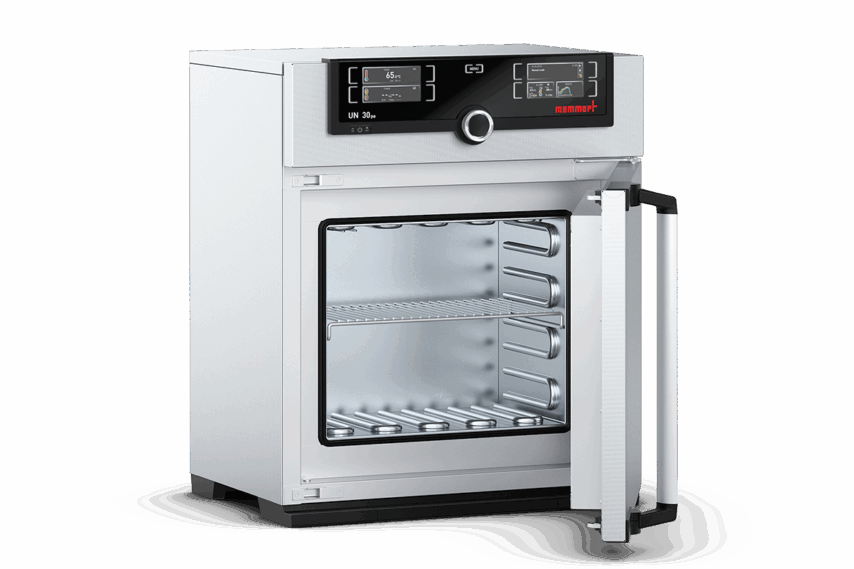

Memmert UN30PA

Paraffin Oven

Memmert UN30PA
Memmert UN30PA
Internal Volume
32 L (1 cu.ft.)
Temp. Range
+5 to +80 °C
Dimensions (in)
23 x 27.75 x 17

Standard Delivery Paraffin Oven

Memmert Ovens Overview

Hettich offers various ovens/sterilizers, vacuum, paraffin, and pass-through ovens that lead the competition in precision, safety, and reliability. Learn more about the many benefits Memmert universal ovens have to offer.

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with 2-point locking (compression door lock)

Warranty

3-year warranty

Internals

1 stainless steel grid(s), electropolished

Calibration Certificate

Works calibration certificate, calibration at +80°C

Specifications


Memmert UN30PA
Model
Memmert UN30PA
Internal volume (cuft)
1
Temp. range
UN: +5 above ambient to +80 °C
Sensor
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
0.1 °C
Control Panel
TwinDISPLAY, adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Convection/Fan
(UN) Natural Convection
Programming
AtmoCONTROL software on a USB stick fro programming, managing and transferring programmes via Ethernet interface or USB port.
Temp. Control
Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY
Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Visual and acoustic
Humidity rh
Max. 80 %, non-condensing
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides. Nearly gas-tight interior.
Interior Dims (WxHxD) in.
15.75 x 12.5 x 10
Exterior dims (WxHxD) in.
23 x 27.75 x 17 (d +2.25 in. door handle)
Weight (lbs.)
99
Power
115 V, 50/60 Hz, approx. 1600 W
Warranty
3 years
